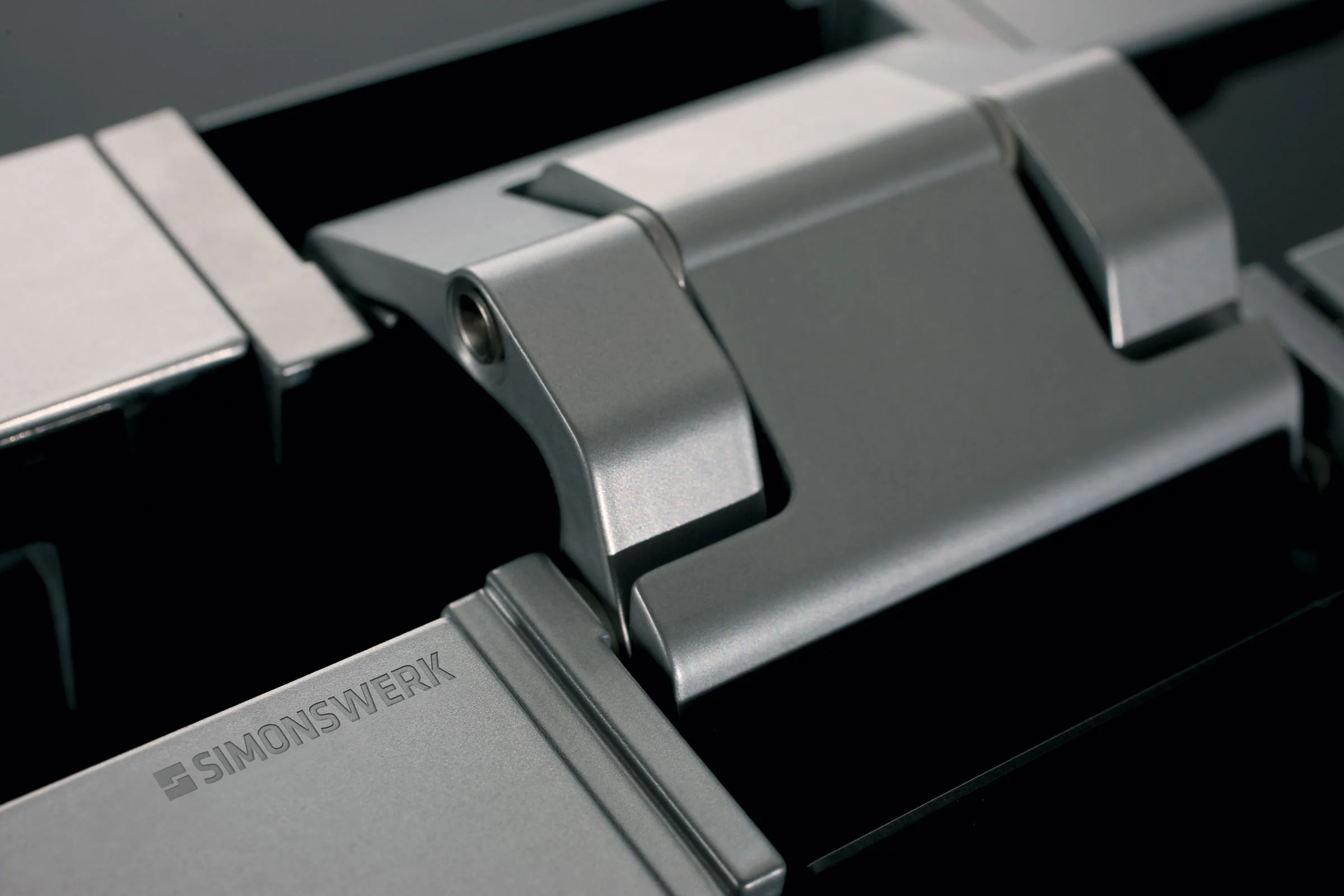

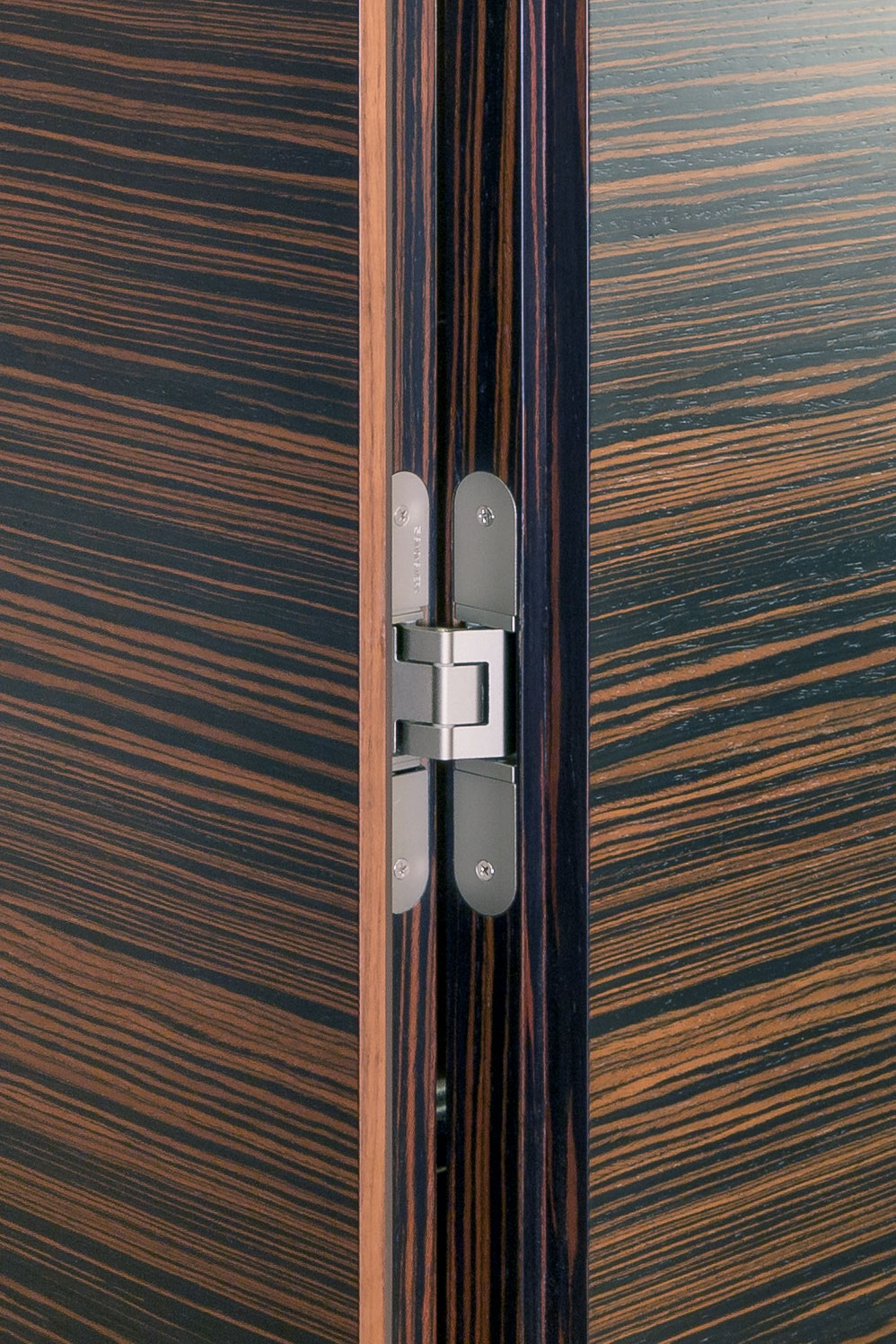

TECTUS® Concealed Hinge System




The most comprehensive 3-D adjustable hinge system in the world, TECTUS® is the state-of-the-art in hinge technology with models for flush wood or metal doors from 88 lbs to 660 lbs. TECTUS® hinges are not only for hidden doors. Millworkers love using these heavy-duty hinges because they are easy to install, easy to adjust with a simple hex key and without taking the door off the hinges.  Designers love them for their wide range of high-quality architectural finishes that allow them to specify them throughout their modern products.

DOWNLOAD : TECTUS® Concealed Hinge System Brochure



SYSTEM FEATURES :

  • Easy adjustment in 3 Dimensions : for precise and efficient installation and maintenance of flush doors.
  • High Load Capacities : from 88 lbs. to 660 lbs. with only two hinges installed.
  • Wide Range of Premium Quality Finishes : Twelve standard architectural finishes. Custom finishes possible.
  • Maintenance-free: Tested beyond 1,000,000 cycles without any wear. No oil / grease.
  • 180° Opening Angle
  • UL Listed Models :all but TE 240 3D provide 20 min.
  • Series TE 526 3D and TE 626 3D A8 hinges provide a 3-HOUR rating.
  • Models for doors with cladding up to 8mm (~.315") : for laminates (e.g.mirror, stone facing, etc.)
  • TE 541 3D FVZ : for frameless flush doors hung on a recessed jambs (e.g. 1/2" drywall>1/8" gap>door)
  • Capability for PERMANENT POWER TRANSFER : for electric lock and security systems. TECTUS® ENERGY.
  • Complete Milling and Installation Support : installation tools and templates are available from your dealer.
  • VERSATILE : Works for WOOD, METAL(with SZ Receiver) and CASING FRAMES (with FZ Fixing Plate).
  • Engineered and made in Germany by Simonswerk : unquestionable manufacturing standards.



DOWNLOAD : TECTUS® Concealed Hinge System Brochure

Often imitated but never matched, this is the most comprehensive system of high-performance hinges available anywhere. Featuring 3-D adjustable solutions for doors from 88 to 660 lbs. with only two hinges installed, TECTUS concealed hinges are offered in a dozen high-quality architectural finishes.  We've been selling and supporting TECTUS hinges in North America longer than anyone else and have a accumulated a deep understanding of how to specify and install these hinges in every situation. Like many of the millworkers that return to us for TECTUS®, we recommend these hinges as a smart modern solution for almost any door in your project.



TECTUS® hinges are easy to install. Millworkers and contractors who have used non-adjustable invisible hinges in the past and have wrestled with hanging these doors, especially heavier ones, will see TECTUS® concealed hinges as a revelation. With a hex key, you can tweak the door leaf into perfect alignment and walk away knowing that when the building settles you won't need to return to take the door off and take a planer to it, or worse. Installing TECTUS® hinges is straight-forward. Simonswerk offers a complete suite of milling frames and templates. Applicable for wood, steel and aluminum frames, Tectus can be used throughout a project. TECTUS provides When looking for pricing, leadtimes or installation tools and information, or if a question comes up in the shop or on site, just call us for prompt, knowledgeable support :

BETTER BUILDING HARDWARE : +1-866-636-1627

easy to maintain: for owners and facilities managers who are looking for short-term value and long-term dependability, TECTUS® is the high performance hinge that delivers both. As discussed above, the TECTUS® system, with its ease of installation and 3-dimensional adjustability, has built-in efficiencies for your project. TECTUS® hinges are engineered with maintenance-free bearings so there is no need for a scheduled greasing. Well-installed TECTUS®hinges are essentially set for the life of the building (TECTUS® hinges have been tested to 1,000,000 cycles under full load). Unlike concealed cabinet hinges, aka European hinges, Simonswerk TECTUS® hinges are engineered to take on heavier doors. There is no other product at any price which brings together all the features and options that the TECTUS hinge system offers. With Simonswerk's worldwide reputation as a conscientious manufacturer of state-of-the-art hinges, you can be assured that you have provided your project with the highest quality hardware available anywhere.



SIMONSWERK TECTUS® ENERGY HINGES

DOWNLOAD : TECTUS® ENERGY Brochure

Permanent Power through the hinge.

SIMONSWERK TECTUS® : FINISHES for NORTH AMERICA

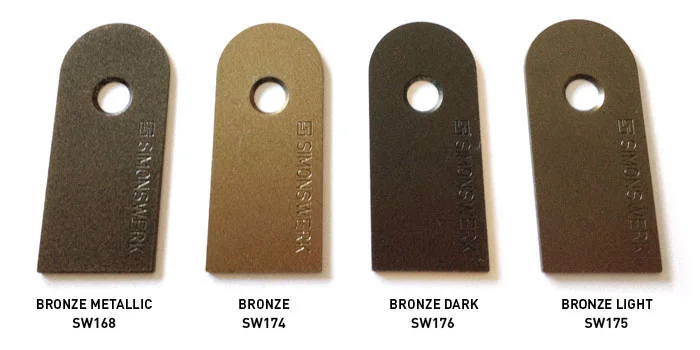

 HERE ARE THE NEW BRONZE FINISHES IN RELATION TO THE BRONZE METALLIC

HERE ARE THE NEW BRONZE FINISHES IN RELATION TO THE BRONZE METALLIC
