Beautifully engineered, minimalist sliding and glass door pivot hinge solutions for basic and rather extraordinary situations.

DOWNLOAD : Complete astec Sliding Door Hardware Brochure


astec 400 and 410 sliding door hardware

DOWNLOAD : Technical Documents for System 400 + System 410

DOWNLOAD : Installation Instructions for System 400 + System 410

  • Capacity : System 400 : 1760 lbs. / System 410 : 660 lbs. with a set of wheels.

  • For glass, wood or other sheet material panels from 3/8" to 2" thick

  • 120mm and 160mm diameter wheel options

  • System 400 wheels run in a grooved floor track (hardwood or polyamide in grey or black)

  • System 410 rabbeted wheels run on a flat stainless rail

  • All fasteners are concealed

  • Closer/Damper is now available for panels up to 440lbs!


astec 1000 sliding door hardware

If you are looking to move very large panels of glass with the minimum of hardware, the astec System 1000

DOWNLOAD : Technical Documents for System 1000

DOWNLOAD : Installation Instructions for System 1000

  • Capacity of 220 lbs. PER LINEAR FOOT. Meaning, you can use essentially any size panel.

  • No width limit and the height of the panel is limited by the stiffness of the material.

  • Primarily for glass from 3/8" to 3/4", however we have worked with them on thicker glass and even wood.

  • Because it is engineered so well, floor must be level.

  • Closer/Damper is now available for panels up to 440lbs!

  • Floor Track standard finish is clear anodized or black anodized. Custom solutions possible.


astec 500 and 510 swinging door hardware

About the size of a credit card, this small, unobtrusive patch fitting for swinging glass doors does the job, providing a deceivingly hearty alternative to the run-of-the-mill glass pivots.

DOWNLOAD : Technical Documents for System 500 (rounded) + System 510 (rectangular)

DOWNLOAD : Installation Instructions for System 500 (rounded) + System 510 (rectangular)

  • Capacity of 300 lbs.

  • Maximum panel width : 48"

  • For glass panels from 3/8" to 3/4"

  • This hinge has no stop and will rotate 180°

  • Can be prepared for a Floor Closer

  • Transom pivot available.

  • No visible fasteners.

  • System 500 features a rounded top.

  • System 510 features square corners

  • IN DEVELOPMENT : the System 520 pivot with integrated closer.

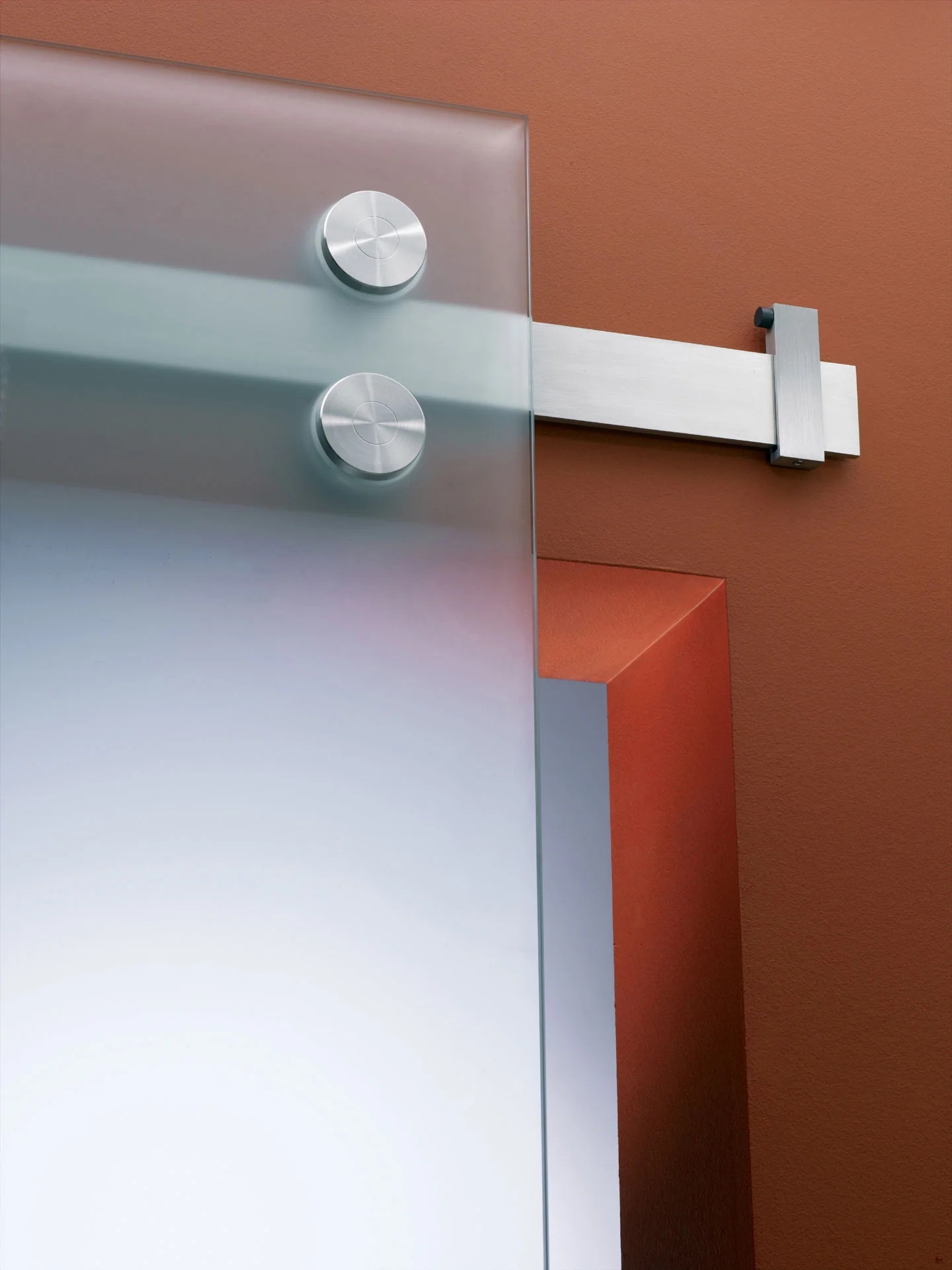

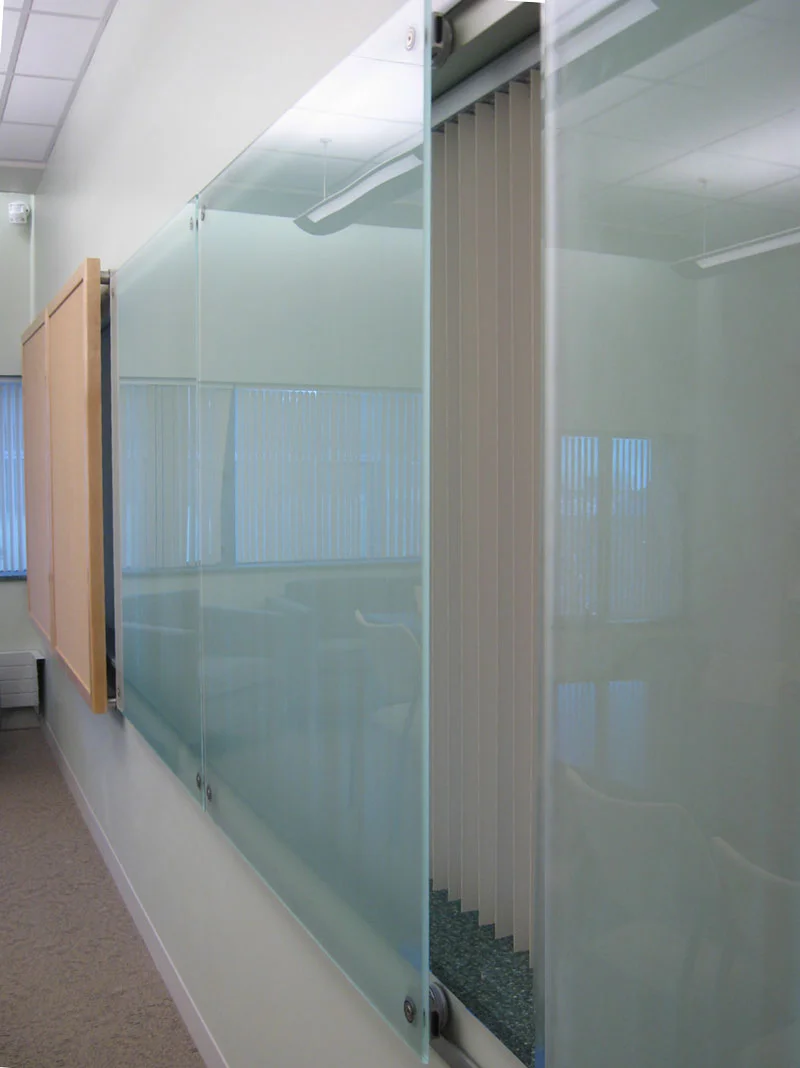

astec 700 sliding door hardware

DOWNLOAD : Technical Documents for System 700

DOWNLOAD : Installation Instructions for System 700

  • Capacity of 220 lbs.

  • Especially useful where a floor-to-ceiling panel is needed.

  • For glass panels from 3/8" to 1/2" and wood panels up to 1-3/4".

  • Small (2.2" diameter) wheels roll smoothly on a 2"x1/4" rail.


astec 800 sliding door hardware

DOWNLOAD : Technical Documents for System 800

DOWNLOAD : Installation Instructions for System 800

  • Capacity of 240 lbs.

  • Surprisingly compact fitting provides

  • Red Dot award winning design.

  • For glass panels from 3/8" to 1/2" and wood panels up to 1-3/4".


astec 200 wall divider system

  • Versatile system for glass dividers and pivot hinge doors.

  • Completely customizable. Contact us for more information. +1-877-777-0592



astec Awards

  • astec's unique designs have received many international product design awards including the 2015 Architizer A+ Jury Award.
